Jiangsu Huayi MW-Model sueding machine
MW-Model · built by Jiangsu Huayi Machinery.

Sueding machine · Horizontal · dry or wet

MW-Model

The horizontal machine. It carries six sanding rollers with four carbon fibre rollers optional, takes the wider 305 or 334 mm carbon fibre rollers, and runs dry or wet — the more configurable machine, at a lower top speed.

Enquire about the MW-Model

Specification

Horizontal Combined Sueding Machine

Specification
Working width1800 – 3600 mm
Max fabric width1600 – 3400 mm
Mechanical speed5 – 45 m/min
Sanding roller diameterØ176 mm · Ø215 mm (optional)
Carbon fiber roller diameterØ305 mm (narrow) · Ø334 mm (wide)
Roller combination6 sanding rollers · 4 carbon fiber rollers (optional)
Sueding methodDry / wet sueding

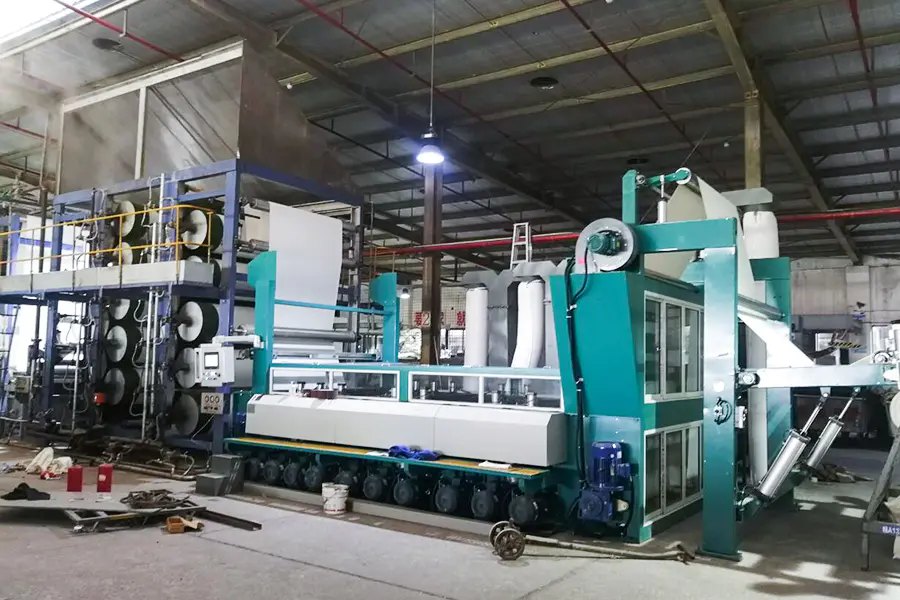

The MW-Model sueding machine installed on a mill floor
Installed on a working floor.

What sueding does

Abrasive and carbon fibre rollers raise a short, dense nap on the fabric surface. The result is a softer, drier handle and a matt finish — the peach-skin effect sold on lining, bedding, outerwear shell and upholstery cloth.

What we do around it

We specify the machine from the cloth and the handle you are aiming for, clear it through Egyptian customs ourselves, install and commission it on your floor, and hold the fast-moving spare parts in Cairo.
