Scope of application
Cotton yarn, wool yarn, acrylic yarn, polyester yarn and other blended yarns.
Two-for-one twister · Spun yarn · compact

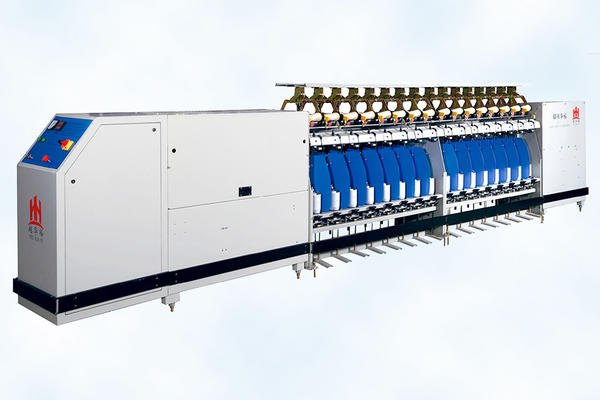

HY318
A compact, gear-driven machine for spun yarn. A complete 128-spindle machine runs on a single 11 kW motor, and it is especially suited to twisting doubled polyester yarns with spandex.
Enquire about the HY318Specification
Spun Yarn Two-For-One Twisting Machine
| Operating form | Two sides, single layer |
|---|---|
| Spindles per section | Single layer 16-spindle multiplication (128 spindles) |
| Spindle pitch | 225 mm (146 spindles) / 254 mm (166 spindles) |
| Spindle speed | 3,000 – 12,000 r/min |
| Twist | 98 – 2,222 T/M |
| Twisting direction | S or Z |
| Tensioner | Steel ball type |
| Winding | Flangeless bobbin, conical shape or parallel winding, stroke 152 mm |
| Winding stroke | 152 mm (unregulable) |
| Rated power | 11 kW |
| Starting method | Star-delta slow start / inverter start |
| Winding angle | 33° · 38° · 43° |
| Winding speed | Max. 60 m/min |
| Applicable count range | 6/2 – 140/2 Ne pure cotton yarns and polyester blended yarns |
| Winding bobbin size | Conical 3°30′, 4°20′ or 5°57′ · length max 175 mm |
| Overall dimension | 17774 × 660 × 1700 mm / 19374 × 660 × 1700 mm |
| Traverse method | Gear box (optional) / servo drive (optional) |
Main features
- New-type gear transmission structure
- Energy saving: a complete 128-spindle machine runs on an 11 kW motor, against a double bearing spindle seat
- Compact body, occupies less floor space
- Especially applicable to twisting doubled polyester yarns with spandex yarns
- Traverse by servo drive, easy to operate (optional)
