Scope of application
Two-for-one twisting, patterning (pre-shrinking) and false twisting of polyester filament yarn. The crepe yarn produced is used for polyester emulation silk fabrics.
Two-for-one twister · Crepe yarn · false twist

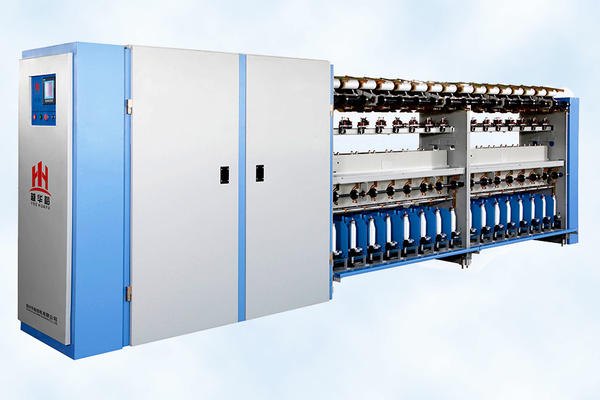

HY388
A false twisting machine for crepe yarn, with a heated oven and a false twist rotor running to 220,000 rpm. The winding motor is separate from the spindle motor, so the number of false twists is settable at will.
Enquire about the HY388Specification
False Twisting Machine For Crepe Yarn
| Operating form | Two sides, single layer |
|---|---|
| Spindle number | Single layer 16-spindle multiplication (192 spindles, 12 sections) |
| Spindle | Spindle wharve diameter Ø28 |
| Spindle pitch | 225 mm |
| Spindle speed | 9,000 – 13,000 r/min |
| False twist range | Winding motor is separate from the spindle motor; the number of false twists is theoretically settable at will |
| Twisting direction | S or Z |
| Unwinding bobbin | Ø42 × L320 |
| Winding tube | Ø76 × L175 |
| Winding angle | 20° – 40°, adjustable at will |
| Tensile device | Multi-section tensile balls and tensile rings in joint use |
| Applicability scope | 30D – 400D polyester chemical filament yarn |
| Installed power | 18.85 kW |
| Thermal oven power | 14.4 kW |
| Working temperature | 140 °C – 250 °C |
| Thermal oven yarn passage length | 460 mm |
| False twist rotor max speed | 220,000 rpm |
| Working environment | Humidity ≤ 85% · temperature ≤ 30 °C |
| Overall dimension | 24250 × 835 × 1820 mm (L × W × H) |
