What we do around it
We specify the machine from the yarn backwards, clear it through Egyptian customs ourselves, install and commission it on your floor, and hold the fast-moving spare parts in Cairo afterwards.
Two-for-one twister · Spun yarn · pneumatic lifting

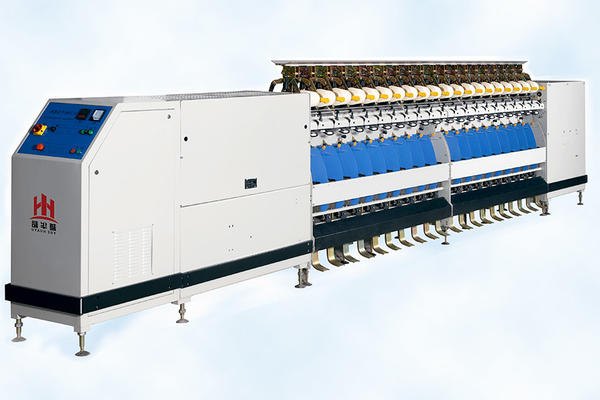

HY358
A spun yarn machine with pneumatic lifting and hand threading, offered in 128- and 200-spindle builds, with either a gear box or a servo drive for the traverse.
Enquire about the HY358Specification
Pneumatic Lifting Spun Yarn Two-For-One Twisting Machine
| Lifting mode | Pneumatic lifting |
|---|---|
| Threading method | Hand threading |
| Operating form | Two sides, single layer |
| Spindles per section | Single layer 16-spindle multiplication (basic model 128 spindles) / single layer 20-spindle multiplication (basic model 200 spindles) |
| Spindle model | 150 / 170 |
| Spindle pitch | 198 / 247.5 mm |
| Spindle speed | 5,000 – 12,000 r/min |
| Twist | 123 – 2,778 / 98 – 2,222 T/M |
| Twisting direction | S or Z |
| Winding method & stroke | Flangeless bobbin, conical form or parallel winding, stroke 152 mm |
| Winding angle | 14°47′ – 21°07′ |
| Spindle transmission | Belt rotates in tangential direction |
| Starting method | Star-delta slow start / inverter start |
| Tension device | Tension capsule, braking cushion |
| Winding capacity | Max. 2.5 kg |
| Winding bobbin | 3°30′, 4°20′, 5°57′ conical bobbin · straight bobbin |
| Applicability | Cotton yarn 16/2 – 160/2 Ne · wool yarn 16/2 – 120/2 Nm |
| Working environment | Humidity ≤ 95% · temperature ≤ 30 °C |
| Unwinding bobbin | Ø37.2 × Ø43 × 170 mm |
| Motor power | 30 kW (200 spindles) / 15 kW (128 spindles) |
| Overall dimension | 23209 × 620 × 1700 mm / 19189 × 620 × 1700 mm |
| Traverse method | Gear box (optional) / servo drive (optional) |
Two-for-one twisting
The yarn is drawn up through the hollow spindle, thrown outward as a balloon, and taken up above — inserting two turns of twist for every single revolution of the spindle.
