blue-fina Laser Engine
A 405 nm laser diode, fibre dot-matrix, automatic focusing, light-power balancing and constant temperature control, integrated into one unit. It is what gives the machine the power to engrave a fine screen.
Screen engraving · BR series · rotary

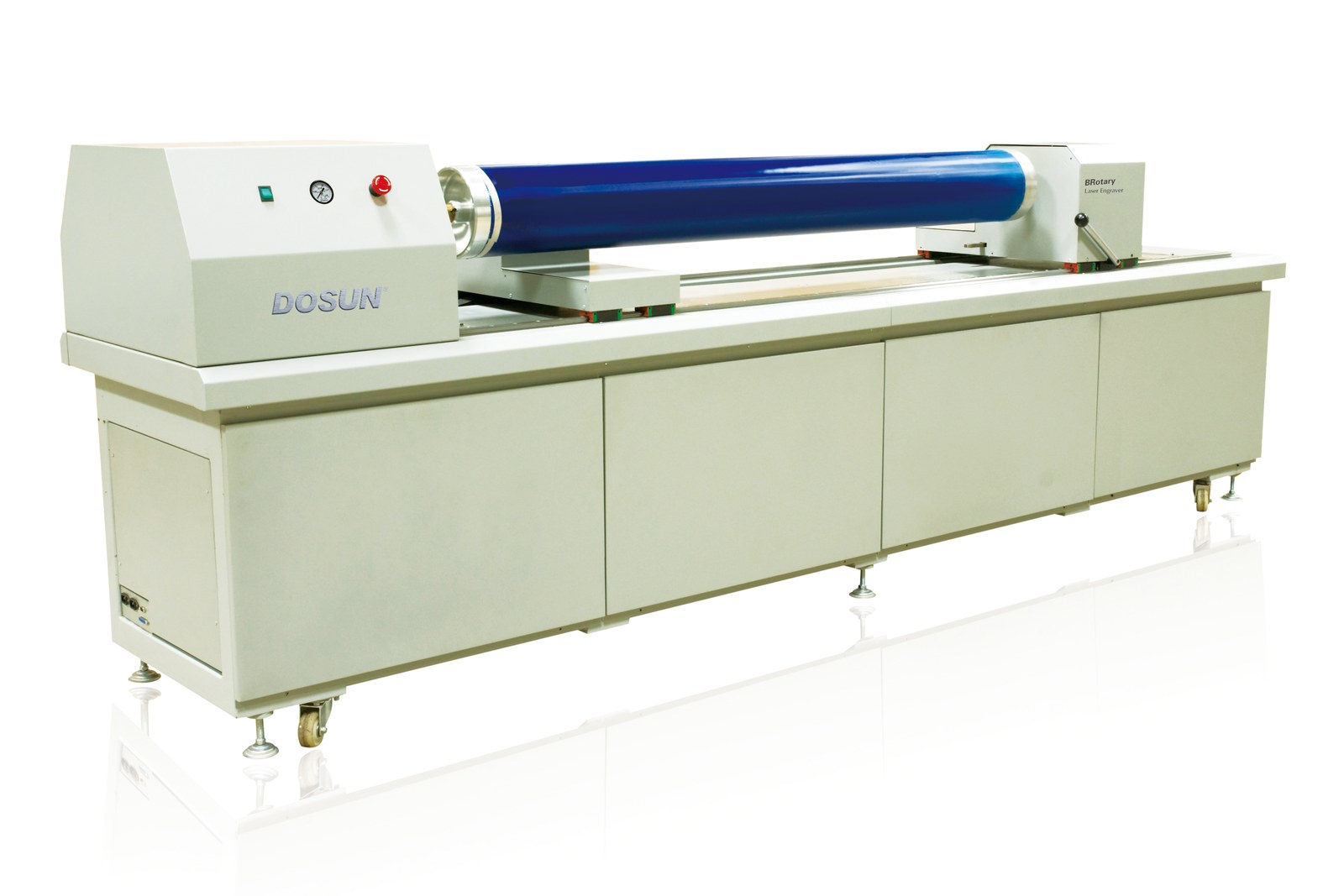

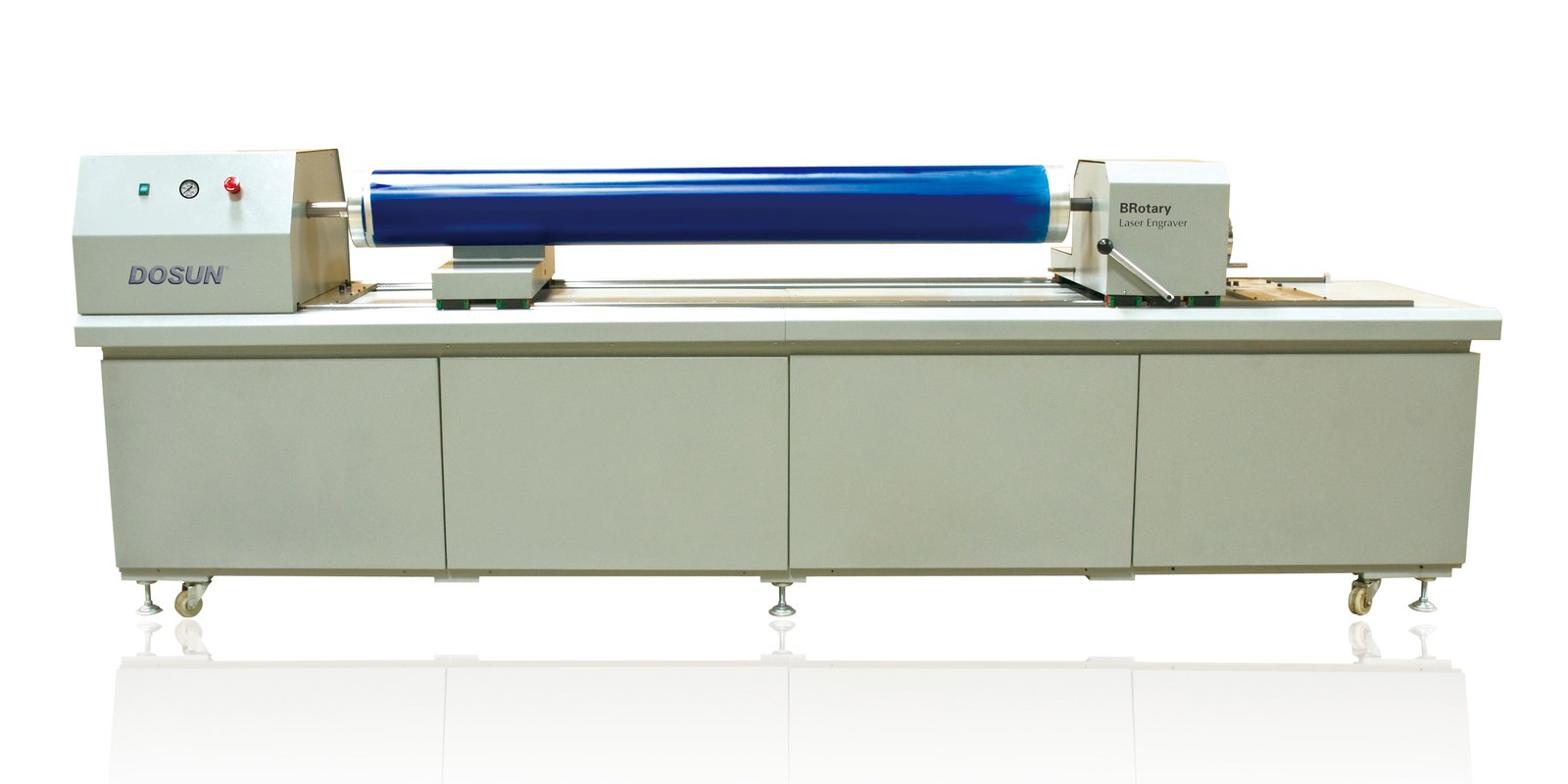

Blue Rotary UV Laser Engraving Machine
Rotary screens imaged directly by laser, in two breadths: 2200 mm and 3500 mm. Repeat is 640 mm as standard with 820, 914 and 1018 mm available, so it covers the repeats a rotary printing line actually runs. Engraving takes six to eight minutes a metre at the standard repeat.
Enquire about the BR seriesSpecification
BR2200 and BR3500
| Model | BR2200 | BR3500 |
|---|---|---|
| Screen breadth | 2200 mm | 3500 mm |
| Machine dimension | 3650 × 750 × 1220 mm | 4850 × 750 × 1220 mm |
| Weight | 900 kg | 1200 kg |
| Screen repeat | 640 mm standard · 820 / 914 / 1018 mm optional | |
| Resolution | 360 / 720 dpi · 300 / 600 dpi · 254 / 508 dpi | |
| Repeated accuracy | ±0.02 mm | |
| Imaging light source | 405 nm laser diode | |
| Engraving speed | 6 – 8 min/m at 640 mm repeat | |
| Acceptable file format | BMP / TIFF | |
| Ambient temperature | 5 – 40 °C | |
| Ambient humidity | 30 – 80%, non-condensing | |
| Lighting | Yellow light | |
| Power | 1.5 kW / 220 V, 50 Hz | |
engravine Software
Upgraded through tens of editions over decades, and a thorough synthesis of engraving technique. DOSUN describe it as belonging not only to them but to the textile printing industry as a whole.
perfekt Hardware Platform
Decades of engraver-building behind it, hundreds of installed machines, and thousands of technical details settled — the accumulated experience is the platform.
The screen engraving flow
- Coating
- Low-temperature oven
- Laser engraving
- Developing
- Testing
- High-temperature oven
- End ring fitted — finished screen
What we do around it
We specify the machine from the screens your printing line runs — breadth, repeat and the detail your designs need — clear it through Egyptian customs ourselves, and install and commission it on your floor. Our technicians are on call afterwards, and we hold the fast-moving parts in Cairo.
